Compact / Modular Planetary Mixer Concrete Batching Plant

The Uniworld Compact / Modular Planetary Mixer Concrete Batching Plant is designed for high-quality concrete production with superior mixing efficiency. With a production capacity range of 20 to 60 CuM/hr, it is ideal for projects that require uniform mixing of high-grade concrete, such as precast, paver block manufacturing, and specialized construction applications.

The planetary mixer technology ensures thorough mixing of cement, aggregates, water, and admixtures, producing a homogeneous concrete mix with excellent workability. Its compact modular design allows for quick installation, easy relocation, and minimal site preparation. The plant is equipped with load cell-based weighing systems for aggregates, cement, water, and admixtures, ensuring precise batching and consistent quality.

The fully automatic PLC-based control system with touchscreen HMI makes operation smooth and efficient, while the heavy-duty steel structure guarantees long service life, even in demanding site conditions.

• Capacity Range: 20 CuM/hr to 60 CuM/hr

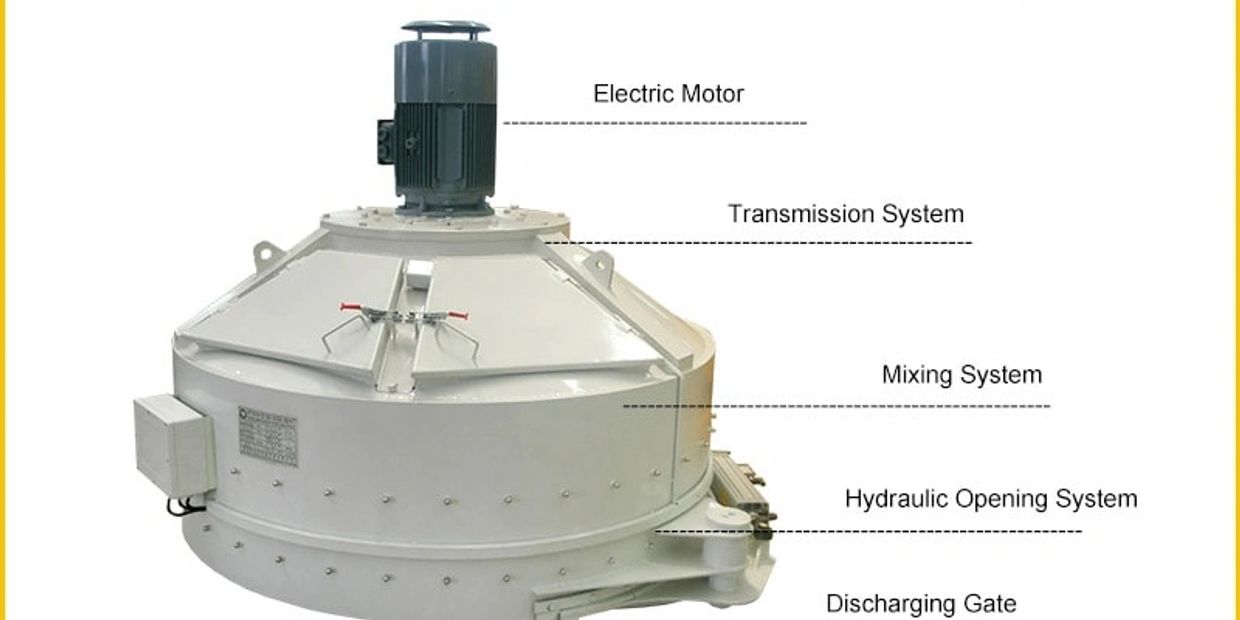

• Mixer Type: Planetary mixer for superior mix quality
• Batch Capacity: 0.5 CuM to 1 CuM per batch (depending on model)
• Mixer Motor Power: High-efficiency electric drive motor
• Aggregate Storage Bins: 3–4 bins, 10–15 CuM capacity each
• Aggregate Feeding: Belt conveyor with load cell-based weighing
• Cement Weighing: Independent load cell-based hopper
• Water Weighing: Load cell-based weighing for accurate dosing
• Additive Weighing: Separate system for chemical admixtures
• Automation: Fully automatic PLC control with touchscreen HMI
• Discharge Height: Standard 3.8–4.2 meters (customizable)
• Structure: Modular, heavy-duty steel frame for durability and relocation
• Mixing Time: 40–60 seconds per batch
• Drive System: Direct drive gearbox for smooth and efficient mixing
• Power Supply: 3 Phase, 415V, 50Hz (customizable)
• Optional Features: Skip hoist feeding, moisture probe, remote monitoring
