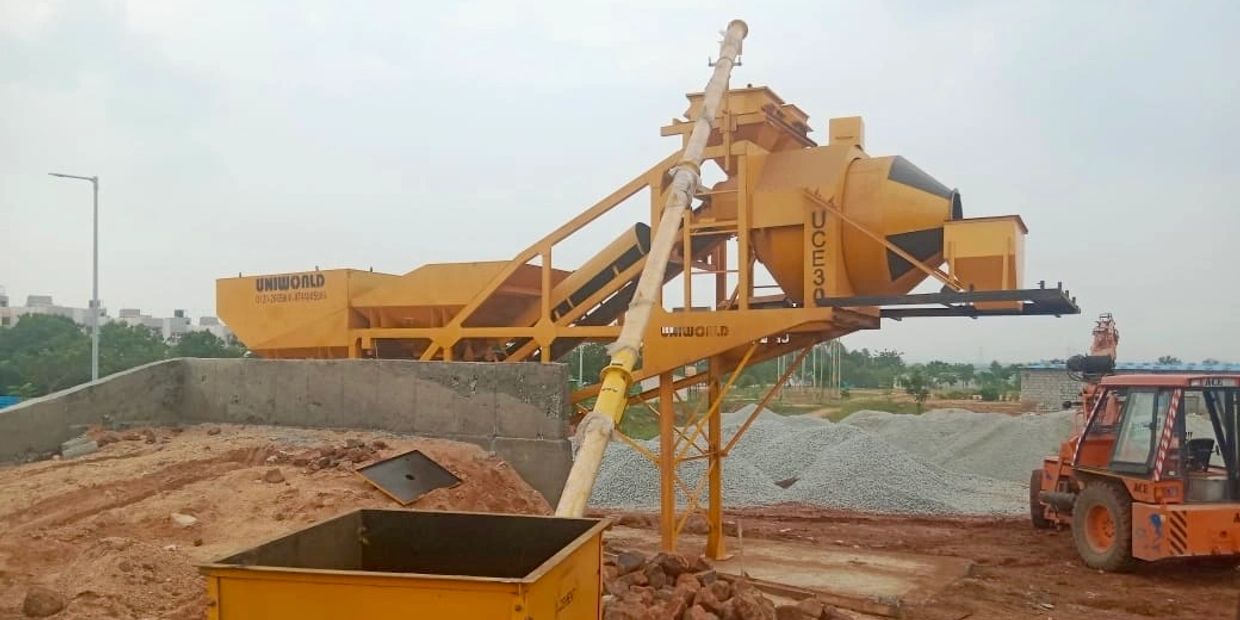

Compact / Modular Reverse Drum Mixer Concrete Batching Plant

The Uniworld Compact / Modular Reverse Drum Mixer Concrete Batching Plant is designed for reliable, cost-effective, and consistent concrete production with a space-saving modular design for easy transport and quick installation. With a production capacity range of 20 to 60 CuM/hr, it is ideally suited for medium to large construction projects, RMC supply, road works, and rural infrastructure development.

Equipped with a heavy-duty reverse drum mixer, this plant ensures efficient mixing with low energy consumption. The modular structure allows quick assembly and relocation, while the load cell-based weighing systems guarantee accurate batching of aggregates, cement, water, and admixtures. A fully automatic PLC-based control panel with a user-friendly HMI ensures smooth operation, real-time monitoring, and easy adjustments.

The rugged steel construction, wear-resistant drum liners, and minimal moving parts make it a low-maintenance, long-lasting solution for contractors and builders looking for dependable performance in challenging site conditions.

• Capacity Range: 20 CuM/hr to 60 CuM/hr
• Mixer Type: Heavy-duty reverse drum mixer
• Batch Capacity: 0.5 CuM to 1.5 CuM (depending on model)
• Mixer Motor Power: Energy-efficient electric drive motor
• Aggregate Storage Bins: 3–4 bins, 10–15 CuM capacity each
• Aggregate Feeding: Belt conveyor with load cell-based weighing
• Cement Weighing: Independent load cell-based hopper
• Water Weighing: Load cell-based weighing for precise dosing
• Additive Weighing: Separate system for chemical admixtures
• Automation: Fully automatic PLC control with touchscreen HMI
• Discharge Height: Standard 3.8–4.2 meters (customizable)
• Structure: Modular, heavy-duty steel frame for durability and relocation
• Mixing Time: 40–60 seconds per batch
• Drive System: Robust gearbox and chain drive system
• Power Supply: 3 Phase, 415V, 50Hz (customizable)
• Optional Features: Skip hoist feeding, moisture probe, remote monitoring
