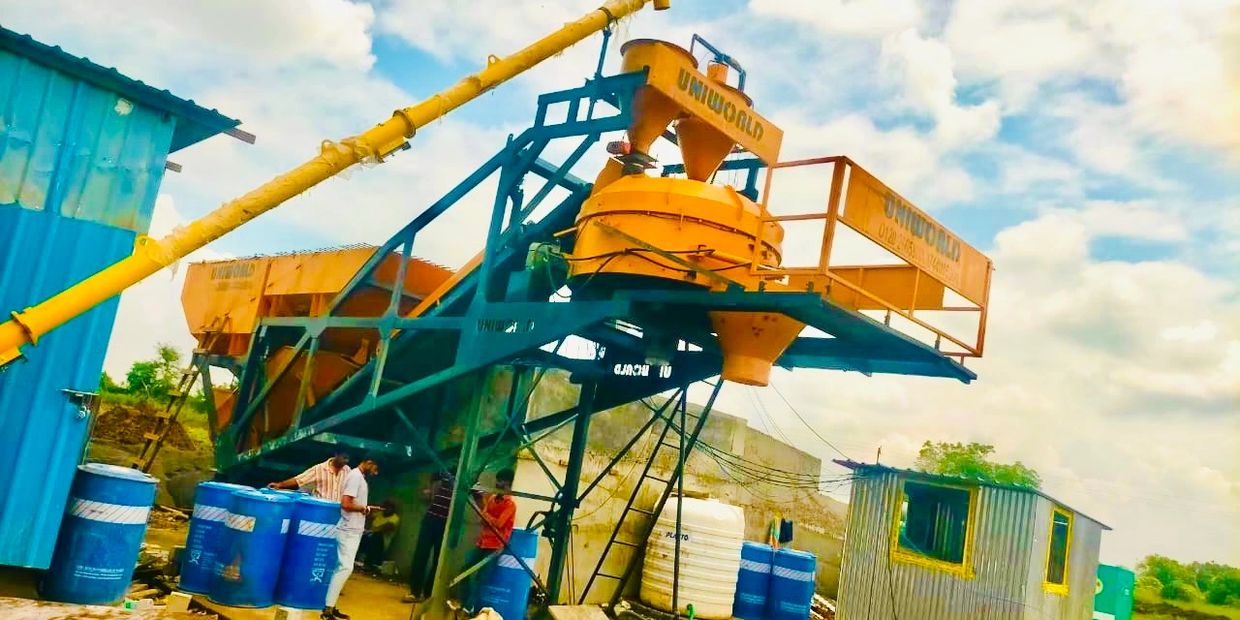

Compact / Modular Turbo Pan Concrete Batching Plant

The Uniworld Compacted / Modular Turbo Pan Concrete Batching Plant is engineered for high-speed, high-quality concrete production with easy installation, compact footprint, and modular design for hassle-free transportation. Designed for outputs ranging from 20 CuM/hr to 60 CuM/hr, it is ideal for RMC plants, precast applications, infrastructure, and industrial projects where productivity, consistency, and durability are critical.

• Capacity Range: 20 CuM/hr to 60 CuM/hr
• Mixer Type: High-performance turbo pan mixer with planetary gear drive
• Batch Capacity: 0.5 CuM to 1.5 CuM (depending on model)
• Mixer Motor Power: Heavy-duty, energy-efficient electric motor
• Aggregate Storage Bins: 3–4 bins, 10–15 CuM capacity each
• Aggregate Feeding: Belt conveyor with load cell-based weighing system
• Cement Weighing: Independent hopper with load cells
• Water Weighing: Load cell-based weighing for precise dosing
• Additive Weighing: Separate weighing system for chemical admixtures
• Automation: Fully automatic PLC control with touchscreen HMI
• Discharge Height: Standard 3.8–4.2 meters (customizable)
• Structure: Modular, heavy-duty steel frame for durability and mobility
• Mixing Time: 30–60 seconds per batch
• Drive System: Robust gearbox with low maintenance design
• Power Supply: 3 Phase, 415V, 50Hz (customizable)
• Optional Features: Skip hoist feeding, moisture probe, remote monitoring

• Compact & Modular Design – Easy to transport, quick to install.
• High Mixing Efficiency – Turbo pan mixer delivers superior homogeneity in shorter mixing cycles.
• Precision Weighing – Load cell-based systems ensure consistent concrete quality.
• Energy Efficient – Optimized motor power and mixing design reduce operational costs.
• Durable & Low Maintenance – Heavy-duty structure and wear-resistant liners ensure long service life.
• Customizable – Available in different bin configurations and discharge heights.

With Uniworld’s commitment to innovation, engineering excellence, and customer satisfaction, the Compacted / Modular Turbo Pan Concrete Batching Plant delivers maximum output, consistent quality, and dependable performance for all your construction needs.
