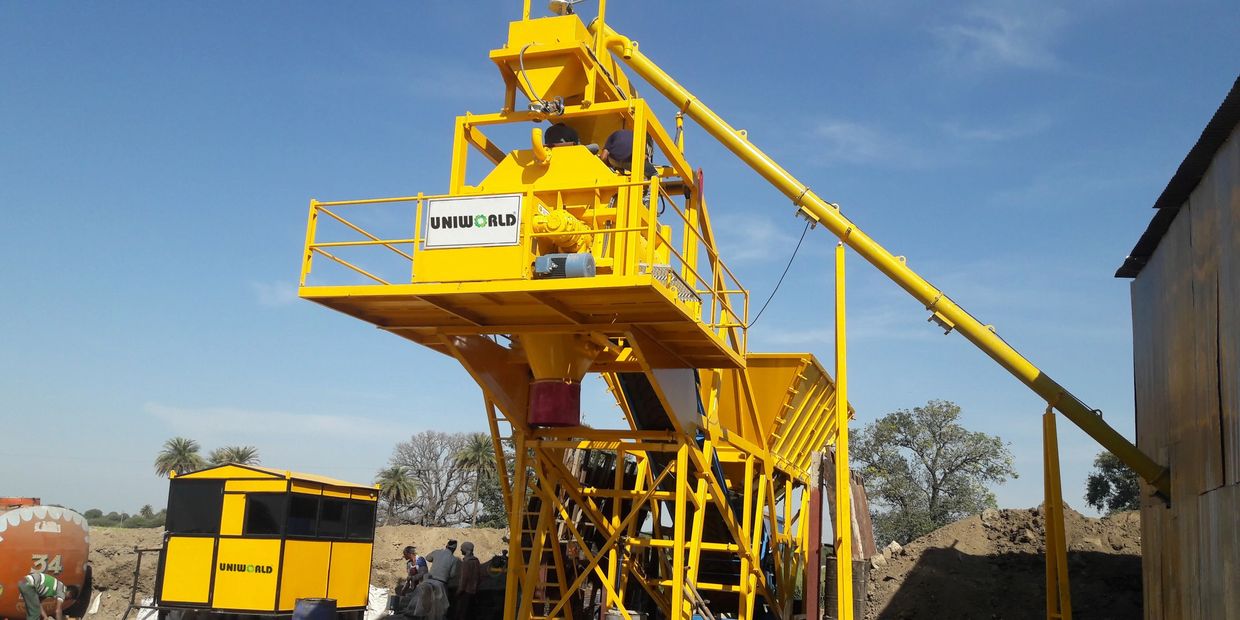

Compact / Modular Twin Shaft Concrete Batching Plant

The Uniworld Compact / Modular Twin Shaft Concrete Batching Plant is engineered for high-volume and consistent concrete production. With a production capacity of 20 to 60 CuM/hr, it is ideal for RMC plants, large-scale infrastructure projects, and heavy-duty construction works.

The twin shaft mixer technology ensures fast and uniform mixing, even with harsh aggregates, producing high-strength, consistent-quality concrete. The plant’s modular design allows for quick installation, reduced foundation costs, and easy relocation, making it an excellent choice for both permanent and semi-mobile applications.

Equipped with load cell-based weighing systems for aggregates, cement, water, and admixtures, along with a fully automatic PLC control system, this plant guarantees precision, efficiency, and reliability batch after batch.

• Capacity Range: 20 CuM/hr to 60 CuM/hr
• Mixer Type: Twin shaft mixer for high-intensity mixing
• Batch Capacity: 0.5 CuM to 1 CuM per batch (depending on model)
• Mixer Motor Power: High-efficiency electric drive motor
• Aggregate Storage Bins: 3–4 bins, 10–15 CuM capacity each
• Aggregate Feeding: Belt conveyor with load cell-based weighing
• Cement Weighing: Independent load cell-based hopper
• Water Weighing: Load cell-based weighing for precise dosing
• Additive Weighing: Separate system for chemical admixtures
• Automation: Fully automatic PLC control with touchscreen HMI
• Discharge Height: Standard 3.8–4.2 meters (customizable)
• Structure: Modular, heavy-duty steel frame for long service life
• Mixing Time: 30–45 seconds per batch
• Drive System: Direct drive gearbox for smooth operation
• Power Supply: 3 Phase, 415V, 50Hz (customizable)
• Optional Features: Skip hoist feeding, moisture probe, remote plant monitoring

• High Mixing Efficiency – Twin shaft technology ensures faster mixing cycles with uniform quality
• Robust & Durable – Heavy-duty steel structure for long-term performance in tough site conditions
• Precision Weighing – Load cell-based weighing for aggregates, cement, water, and admixtures
• Automation Ready – Fully automatic PLC system with touchscreen HMI for easy operation
• Modular Design – Quick installation, low foundation cost, and easy relocation
• Versatile Applications – Suitable for RMC production, large infrastructure, and high-volume projects
• Low Maintenance – Easy access for cleaning and servicing
