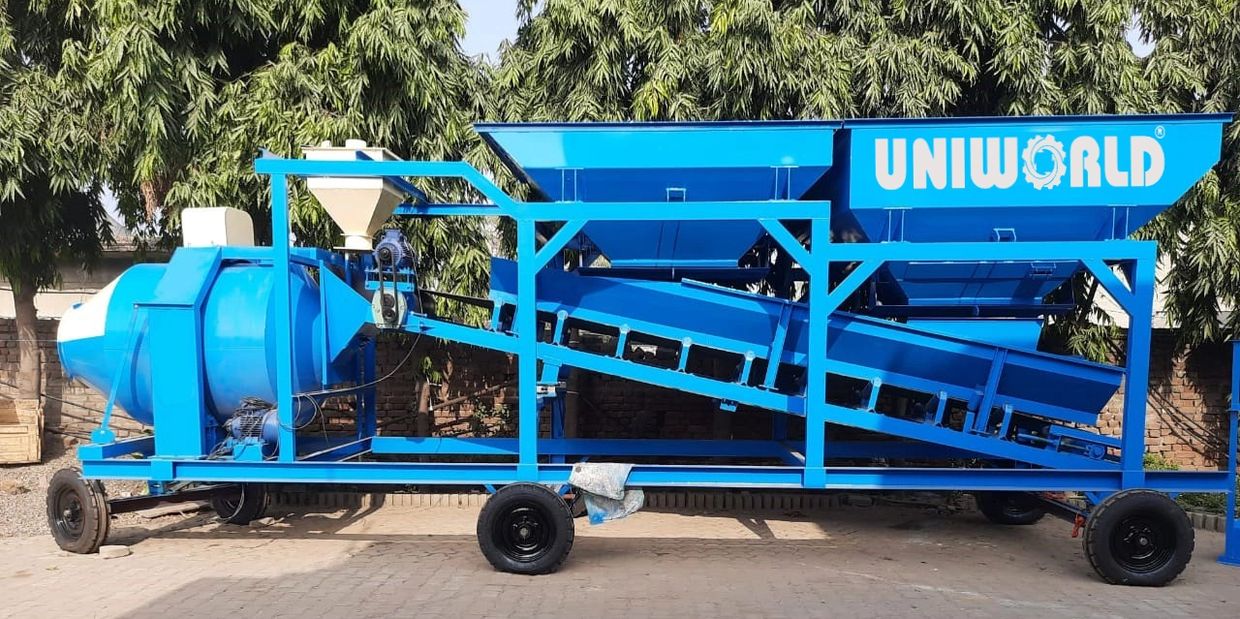

Mini Reverse Drum Mobile Concrete Batching Plant

The Uniworld Mini Reverse Drum Mobile Concrete Batching Plant is designed for maximum mobility, quick setup, and reliable performance. Delivering 20 to 30 CuM/hr of high-quality concrete, this plant is mounted on a robust mobile chassis with pneumatic tyres, making it easy to transport between project sites.

Equipped with a reverse drum mixer, it ensures uniform mixing, reduced wear, and low maintenance, making it ideal for road projects, bridge works, rural development, and on-site concreting.

• Production Capacity: 20–30 CuM/hr
• Mixer Type: Reverse drum mixer
• Batch Capacity: 0.5 to 0.75 CuM per batch
• Chassis Design: Mobile single chassis with towing arrangement
• Tyres: Heavy-duty pneumatic tyres for easy mobility
• Aggregate Storage: 3–4 bins, 8–10 CuM capacity each
• Aggregate Feeding: Belt conveyor with load cell weighing
• Cement Weighing: Dedicated load cell-based hopper
• Water Weighing: Load cell-based system for accuracy
• Admixture Weighing: Separate weighing for chemicals/additives
• Automation: Fully automatic PLC with touchscreen HMI
• Mixing Time: 40–50 seconds per batch
• Discharge Height: 1.2 to 1.9 meters (customizable)
• Structure: Rugged steel frame, weather-resistant design
• Power Supply: 3 Phase, 415V, 50Hz (customizable)
• Optional Add-Ons: Skip hoist, moisture sensor, remote control system

• Mobile chassis design for rapid site relocation
• Reverse drum mixer for low wear and easy maintenance
• Load cell-based weighing ensures precision in every batch
• Fast installation and dismantling with minimal civil work
• Perfect for temporary sites, infrastructure works, and rural projects
• Fully automated control for consistent concrete production
